Accurate measuring and marking is the foundation of good woodworking.
No matter how sharp your tools or how skilled your technique, if your layout is off, your joints won't fit and your project won't come together.
Getting this stage right sets everything else up for success. This guide covers the essential tools and how to use them effectively.
Why Measuring and Marking Matters
In woodworking, you're often working to tolerances of a millimetre or less. A small error at the marking stage compounds through every subsequent step — a joint that's a fraction out, a tenon that won't seat properly, a frame that won't sit square.
Taking time to mark out carefully and consistently is always faster than correcting mistakes later.
The golden rule: measure once from a reference face and edge, and mark with a knife rather than a pencil wherever precision matters.

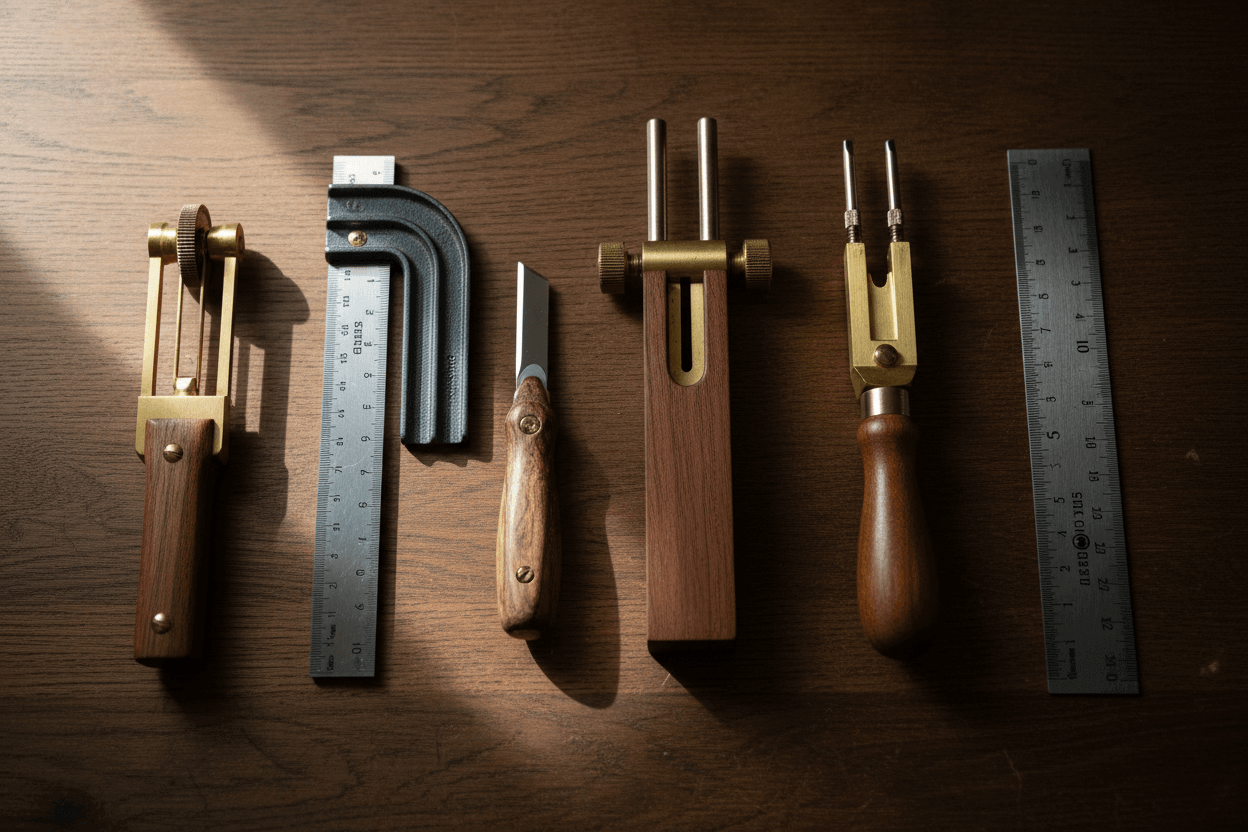

Essential Marking Tools
Marking knife — the most precise marking tool available. A knife severs the wood fibres cleanly, leaving a fine line that a chisel or saw can register against directly.
Use it for joint layout, dovetails, and anywhere you need a crisp, accurate line. A single-bevel knife is preferred by many woodworkers as it sits flush against a square or straightedge.
Pencil — useful for rough layout, marking waste areas, and any line that doesn't need to be cut to directly. A sharp HB or 2H pencil gives a fine enough line for most general marking.
Avoid thick carpenter's pencils for fine work — the line is simply too wide.
Awl or scriber — ideal for marking centre points for drilling or scribing lines on metal and hardwood where a knife would be overkill.
Squares
A reliable square is non-negotiable. It's used constantly — checking faces and edges, marking out joints, and verifying that assemblies are true.
- Try square — the standard woodworking square, with a wooden or plastic stock and a steel blade. Used for marking and checking 90° angles across and along the grain.
- Check yours for accuracy regularly by marking a line, flipping the square, and checking it aligns.
- Engineer's square — an all-steel square, typically more accurate than a try square. Excellent for checking machine setups and marking on metal or hardwood.
- Combination square — the most versatile option. The sliding head can be set to any position along the blade, allowing you to mark consistent depths, check 45° mitres, and use the blade as a straightedge. A quality combination square is one of the most useful tools in the workshop.
Sliding Bevels
A sliding bevel (also called a bevel gauge or T-bevel) is used to set, transfer, and mark angles other than 90°. The blade pivots and locks at any angle, making it indispensable for dovetail layout, angled tenons, and compound joints.
To use one, set the angle from a protractor, a known reference, or directly from a piece you're matching, then lock the blade and use it to transfer that angle consistently across your workpiece. For dovetails, many woodworkers keep two sliding bevels set — one for the pin angle and one for the tail angle — to avoid resetting mid-job.
A good sliding bevel should have a solid locking mechanism that holds the blade firmly without slipping under use.
Marking and Mortice Gauges
Marking gauge — scribes a single line parallel to a reference face or edge. Used for setting out tenon cheeks, rebates, and any parallel line. The fence slides along the beam and locks at the required distance from the point or blade.
Mortice gauge — has two scribing points that can be set independently, allowing you to mark both sides of a mortice or tenon in a single pass. This ensures both lines are perfectly parallel and equidistant from the face edge. Essential for accurate mortice and tenon joinery.
When using either gauge, always work from the same face side and face edge throughout a project. This ensures that any small inaccuracies in the timber are consistent rather than cumulative.
Callipers
Callipers allow you to measure internal and external dimensions with precision — useful for checking stock thickness, setting tool depths, and measuring turned work.
- Outside callipers — measure external dimensions such as diameter or thickness.
- Inside callipers — measure internal dimensions such as the width of a mortice or the inside of a box.
- Digital callipers — combine both functions with a clear digital readout, accurate to 0.1mm or better. The most practical option for most woodworkers, and increasingly affordable.
Tips for Accuracy
Always work from a face side and face edge. Before marking out, identify your best face and edge, mark them with a loop and a tick, and take all measurements from these references. This keeps any variation in the timber consistent.
Use a knife wall. When marking a line you'll cut to, use your marking knife to score a shallow groove. This gives your saw or chisel a precise reference to register against and prevents the tool from wandering.
Check your tools for square. Squares can go out of true over time, especially if dropped. Check them regularly against a known straight edge and replace or recalibrate if needed.
Mark waste clearly. Use a pencil to hatch the waste side of every line. It takes seconds and prevents the costly mistake of cutting on the wrong side.
Double-check before cutting. Measure twice, cut once is a cliché because it's true. A quick check before committing to a cut costs nothing.
Building Your Marking Kit
You don't need everything at once. A good starting kit would be a quality try square, a marking knife, a marking gauge, and a sharp pencil. Add a combination square and sliding bevel as your projects demand them, and callipers when you need precise measurement.
As with all hand tools, buy the best quality you can afford. A well-made square that stays true and a marking gauge with a smooth, positive lock will serve you for decades.
